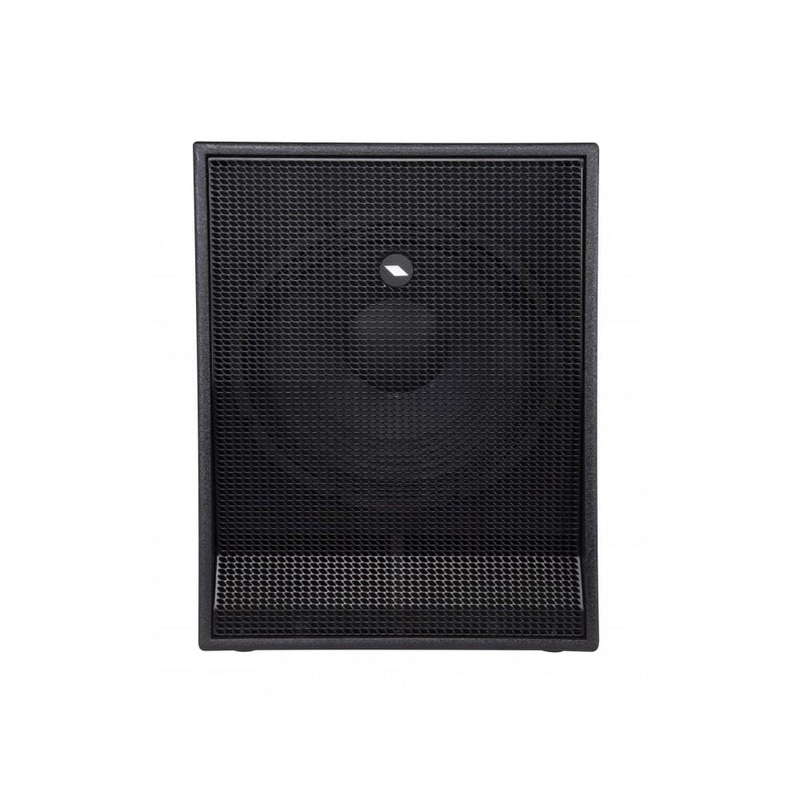

Proel S15P Passive Hybrid Band Pass Subwoofer

Proel S15P Passive Hybrid Band Pass Subwoofer Overview:

PROEL introduces the S Series, a new range of compact and powerful sub-woofers designed to complement PROEL full-range speakers. The variety of size, power and SPL offered by the three passive S models provides, at an unbeatable price point, the perfect low extension solution for any speaker model available in the PROEL range.
All the S models feature high-excursion woofers in a Hybrid Band Pass configuration (HBP). This innovative design provides a higher efficiency compared to direct radiation sub-woofers and, in addition, guarantees a much better coupling of the tuning ducts with the external air, reducing the distortion and the air turbulence, for a more defined sound and deep and punchy lows.
The cabinets are built with 15/18mm plywood and finished with extra-durable polyurethane paint. They feature two flush handles and four sturdy 75mm wheels for an easy transport (S15 and S18 only).

Features:

• Compact passive HBP sub-woofer
• 15 woofer with 3 VC for a deep and extended response
• 400 W AES power
• SPL 1 W / 1 m 97 dB
• Frequency response 40 Hz – 160 Hz

Specifications:

• System type:Hybrid Band Pass subwoofer
• Loudspeaker:15″ woofer with 3″ VC
• Nominal Impedance:8
• Power Continuous (AES):400 W
• Power Program:800 W
• Power Peak:1600 W
• Frequency Response:40 Hz – 160 Hz
• Sensitivity:97 dB @ 1 W/1 m
• Connectors: 2 x NEUTRIK SPEAKON (IN/LINK)
• Cabinet:
• 15/18 mm plywood
• Black anti-scratch paint
• 1.5 mm metal grille
• 2 handles
• 1 x pole socket
• 4 x 75 mm wheels
• Dimensions (W x H x D):435x570x560 (660 with wheels) mm
• Weight:24.5 kg (54 lb)

Made in China
